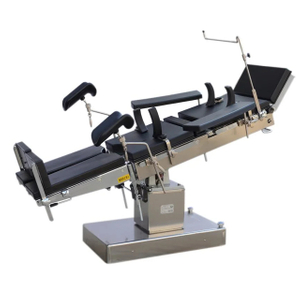

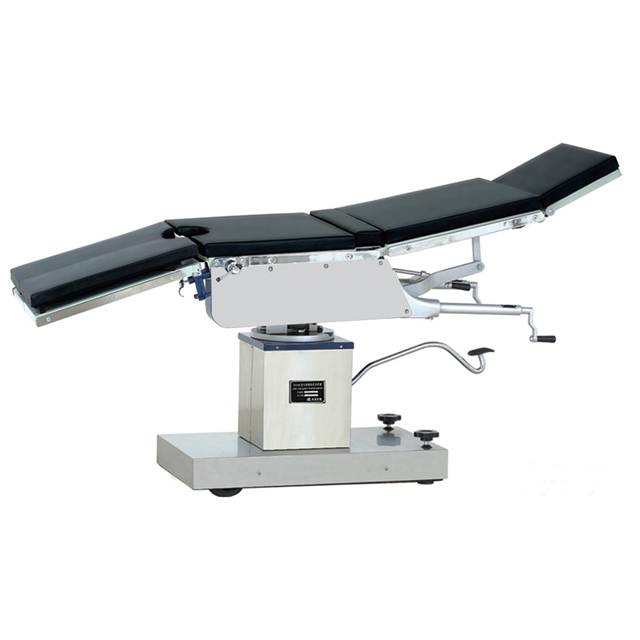

3008 series Manual Operating Table
BEDFORDMED
The 3008 series operating table is a comprehensive multifunctional type, which is suitable for medical units to perform various operations. All movements are controlled by the head
Imported Y-shaped sealing ring, double insurance, no oil leakage. ,
Equipped with a brake device to facilitate the displacement of the operating table.
All movements are manipulated on the head.
One set of shoulder support/waist support, one arm support, one leg support, and one screen support.
Specification of 3008 series surgical operating table:
| length: 2050±50mm |
| Width: 480±20mm |
| height:（750—950）mm ±50mm |
| Trendelenburg/Rev-Trend:20° |
| leftward≥20° rightward≥20° |
| Head board Fold upward≥30° Fold downward≥90° |
| Back board Fold upward≥75° Fold downward≥5° |
| Leg board Fold downward≥90° |
| Waist board elevation: 100mm |
Features of 3008 series surgical table:
lmported sealing ring with long life
A Pair of Shoulder/Waist Support,A Pair of Arm Support,
with brake device
A Pair of Leg Plate,A Screen

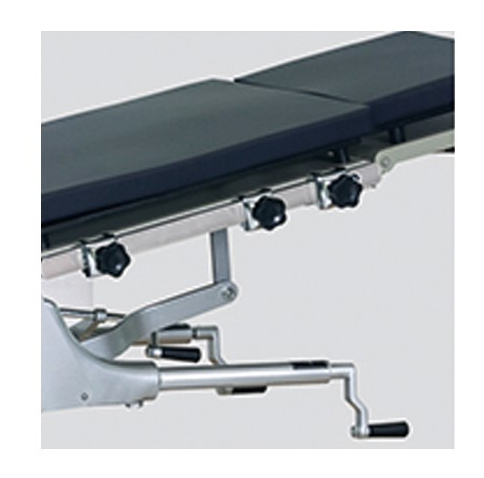

All of actions are controlled by handle under head board.
3008:
| 1.Imported Y type sealing ring |

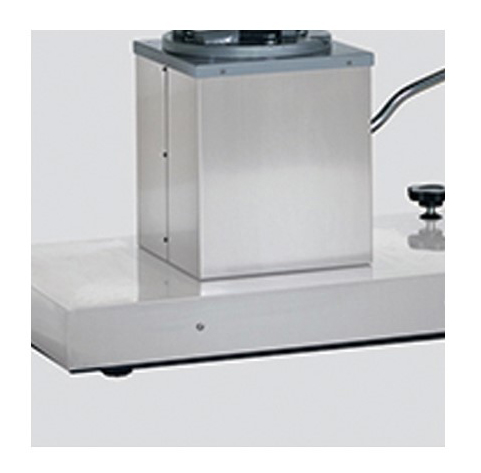

| 2.Base is metalized cold-plate |
| 3.All movements are manipulated from the head |
3008A:
| 1.Imported Y type sealing ring |
| 2.Base and column are made of high quality 304 stainless steel |
3008B:
| 1.Imported Y type sealing ring |
| 2.Base and column are made of high quality 304 stainless steel |
| 3.Leg part is sperate. |
3008C:
| 1.Imported Y type sealing ring |
| 2.Base is stainless steel |
| 3.Leg board is separated & dischargeable |
| 4.Double-decked can do X-ray |
The 3008 series operating table is a comprehensive multifunctional type, which is suitable for medical units to perform various operations. All movements are controlled by the head
Imported Y-shaped sealing ring, double insurance, no oil leakage. ,
Equipped with a brake device to facilitate the displacement of the operating table.
All movements are manipulated on the head.
One set of shoulder support/waist support, one arm support, one leg support, and one screen support.
Specification of 3008 series surgical operating table:
| length: 2050±50mm |
| Width: 480±20mm |
| height:（750—950）mm ±50mm |
| Trendelenburg/Rev-Trend:20° |
| leftward≥20° rightward≥20° |
| Head board Fold upward≥30° Fold downward≥90° |
| Back board Fold upward≥75° Fold downward≥5° |
| Leg board Fold downward≥90° |
| Waist board elevation: 100mm |
Features of 3008 series surgical table:
lmported sealing ring with long life
A Pair of Shoulder/Waist Support,A Pair of Arm Support,
with brake device
A Pair of Leg Plate,A Screen
All of actions are controlled by handle under head board.
3008:
| 1.Imported Y type sealing ring |
| 2.Base is metalized cold-plate |
| 3.All movements are manipulated from the head |
3008A:
| 1.Imported Y type sealing ring |
| 2.Base and column are made of high quality 304 stainless steel |
3008B:
| 1.Imported Y type sealing ring |
| 2.Base and column are made of high quality 304 stainless steel |
| 3.Leg part is sperate. |
3008C:
| 1.Imported Y type sealing ring |
| 2.Base is stainless steel |
| 3.Leg board is separated & dischargeable |
| 4.Double-decked can do X-ray |
