V LED500500 Operating Light
BEDFORDMED
Availability: | |
---|---|

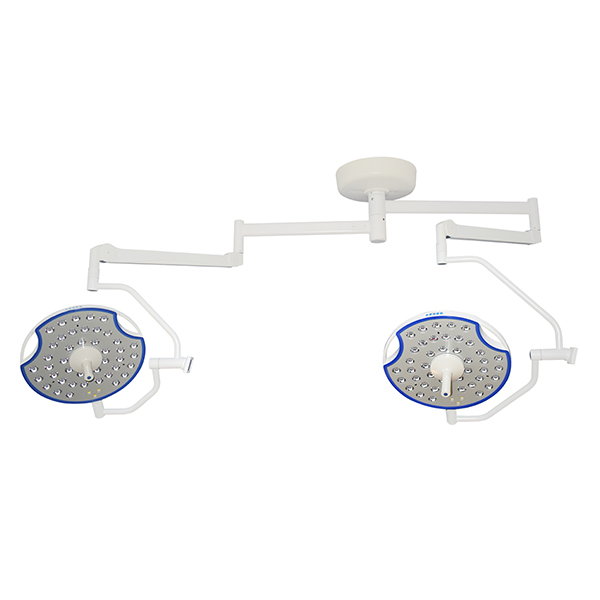

New V Series Medical LED Operating Light Ceiling Type 500500mm Operaitng Light
Main Characteristics of New V Series LED Operating Light:
1.The lamp dome adopts a once formed fully enclosed streamline design.
2.The lamp cap is only 52 mm thick.
3.Use a special new type of high-temperature resistant material in a shadowless lamp system.
4.Multiple heat dissipation design
5.All LED chips use original OSRAM high color reproduction LED
Specification and model:
V LED700/700, V LED700/500, V LED500/500,
V LED700, V LED500, V LED700 MOBILE, V LED500 MOBILE
V LED700 MOBILE WITH BATTERY, V LED500 MOBILE WITH BATTERY
Parameters of New V Series LED Operating Light:
Diameter of Light dome(mm) | 500/500 |
LED bulbs(pcs) | 42/42 |
Luminance(Lux) | 40000-150000/40000-150000 |
Focusable light-field size(mm) | 120-250 |
Color Temp.(K) | 4000-5500K |
Illumination Depth(cm) | >=700mm |
Red Color Index(R9) | 95 |
Dimming Range | 8%-100% 11 STEP |
Endoscopy Model | yes |
Votage Frequency | AC 110V~240V 50/60Hz |
Head Power(W) | 50/50 |
LED bulbs Service Life(hours) | >=50000 |
Installation height(Ceiling Type)(mm) | 2800-3200mm |
Features:
1.Totally enclosed aerodynamic streamline design: The lamp dome adopts a once formed fully enclosed streamline design, without exposed screws, without spraying and painting, and is ultra-thin (the lamp cap is only 52 mm thick). The surface of the fully enclosed dome is waterproof, dust-proof, and free of dead corners hidden by bacteria.
2.Special new type of high-temperature resistant material:The entire shell of operating light is lightweight and beautiful, resistant to ultra-high temperatures, and the test results show no deformation or discoloration within 400 degrees Celsius. Simultaneously possessing the high strength, toughness, thermal conductivity, and flame retardancy of metal materials.
3.Ergonomic design: Adopting a concave double handle around the lamp panel and a detachable disinfection handle below the lamp panel. At the same time, a simple operation button (dual control system) is designed at the edge of the lamp panel. The entire lamp head has no edges and all adopt a streamlined and smooth edge design, which is more in line with ergonomics.
4.The standard configuration of the balance arm includes six sets of universal joints with 360 degree unrestricted rotation, which can meet various surgical height and angle requirements in all directions. It can move flexibly without dead angles and has precise and stable positioning.
5.The cast iron base adopts compression molding with strong stability, which does not rust, discolor, and is acid and alkali resistant, ensuring flexible and convenient operation from multiple angles of the lamp head.
FAQ:
Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: MOQ is 1 set.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
