Surgical Operation Theater Medical Instrument Hospital LED Shadowless Operating Lamp V 700500

BEDFORDMED V series new LED shadowless operating light, fully enclosed, conforms to aerodynamic streamline ultra-thin lamp body design, disinfection, more convenient and flexible operation. Having excellent medical lighting effects and wide applicability, it is an ideal surgical shadowless lighting system that meets the requirements of comprehensive hospitals, beauty salons, dental clinics, dental hospitals, and pet hospitals operation theaters.
  • V LED700500 Operating Light

  • BEDFORDMED

Availability:

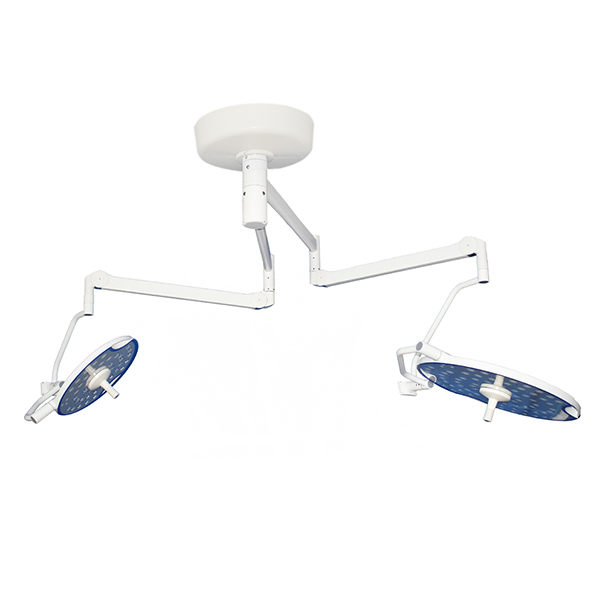

New V Series Medical LED Operating Light Ceiling Type 700500mm Operation Light


Main Characteristics of New V Series LED Operating Light:

1.The lamp dome adopts a once formed fully enclosed streamline design.

2.The lamp cap is only 52 mm thick.

3.Use a special new type of high-temperature resistant material in a shadowless lamp system.

4.Multiple heat dissipation design

5.All LED chips use original OSRAM high color reproduction LED


Specification and model:

V LED700/700, V LED700/500, V LED500/500,

V LED700, V LED500, V LED700 MOBILE, V LED500 MOBILE

V LED700 MOBILE WITH BATTERY, V LED500 MOBILE WITH BATTERY


Parameters of New V Series LED Operating Light:

Diameter of Light dome(mm) 700/500
LED bulbs(pcs) 78/42
Luminance(Lux) 40000-160000/40000-150000
Focusable light-field size(mm) 120-250
Color Temp.(K) 4000-5500K
Illumination Depth(cm) >=700mm
Red Color Index(R9) 95
Dimming Range 8%-100%  11 STEP
Endoscopy Model yes
Votage Frequency AC 110V~240V 50/60Hz
Head Power(W) 80/50
LED bulbs Service Life(hours) >=50000
Installation height(Ceiling Type)(mm) 2800-3200mm


Features:

1.Totally enclosed aerodynamic streamline design: The lamp dome adopts a once formed fully enclosed streamline design, without exposed screws, without spraying and painting, and is ultra-thin (the lamp cap is only 52 mm thick). The surface of the fully enclosed dome is waterproof, dust-proof, and free of dead corners hidden by bacteria.

2.Special new type of high-temperature resistant material:The entire shell of operating light is lightweight and beautiful, resistant to ultra-high temperatures, and the test results show no deformation or discoloration within 400 degrees Celsius. Simultaneously possessing the high strength, toughness, thermal conductivity, and flame retardancy of metal materials.

3.Ergonomic design: Adopting a concave double handle around the lamp panel and a detachable disinfection handle below the lamp panel. At the same time, a simple operation button (dual control system) is designed at the edge of the lamp panel. The entire lamp head has no edges and all adopt a streamlined and smooth edge design, which is more in line with ergonomics.

4.The standard configuration of the balance arm includes six sets of universal joints with 360 degree unrestricted rotation, which can meet various surgical height and angle requirements in all directions. It can move flexibly without dead angles and has precise and stable positioning.

5.The cast iron base adopts compression molding with strong stability, which does not rust, discolor, and is acid and alkali resistant, ensuring flexible and convenient operation from multiple angles of the lamp head.


细节富文本细节富文本-2使用场景富文本(包装)富文本(包装)-2


FAQ:
Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.


Q2: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.


Q3: What's your minimum order quantity?
A: MOQ is 1 set.


Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
