The additional three small lamp beads are suitable for the lighting function of endoscopic minimally invasive surgery. At the same time, a dual-control mode is added to make the operation more convenient and safe.

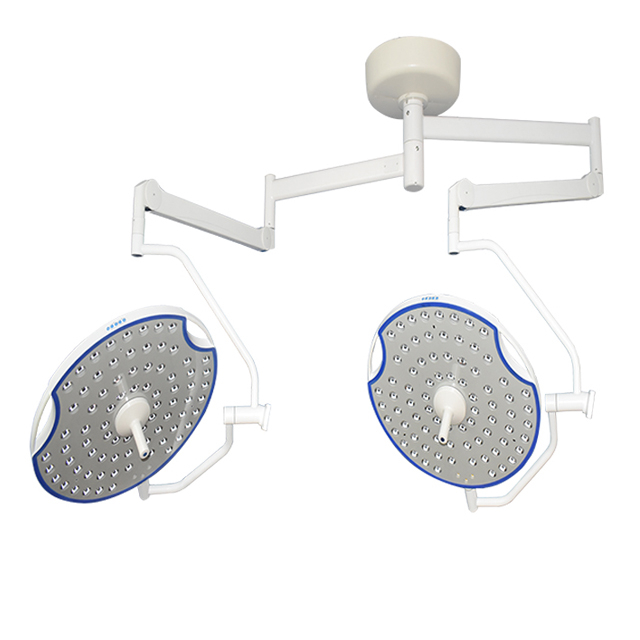

V LED Operating Light 700 700
BEDFORDMED
Availability: | |
---|---|
MEDECO V series LED Operating Light fully enclosed conforms to aerodynamic streamline ultraa-thin lamp body design, disinfection, more convenient and flexible operation.
Having excellent medical lighting effects and wide applicability, its an ideal surgical shadowless lighting system that meets the requirement of comprehensive hospitals, beauty salons, dental clinics, dental hospitals and pet hospitals operating rooms.
Model/ | V LED700/700 | V LED700/500 | VLED500/500 | V LED500 | VLED 70 |
mm) Diameter of Light dome(mm) | 700/700 | 700/500 | 500/500 | 500 | 700 |
LED bulbs(pcs) | 78/78 | 78/42 | 42/42 | 42 | 78 |
Luminance(Lux) | 15000-160000 / 10000-160000 | 15000-160000 / 10000-150000 | 10000-150000 / 10000-150000 | 10000-150000 | 15000-160000 |
Focusable light-field size(mm) | 120-250 | 120-250 | 120-250 | 120-250 | 120-250 |
Color Temp. | 4000-5500K | 4000-5500K | 4000-5500K | 4000-5500K | 4000-5500K |
Illumination Depth(cm) | ≥700mm | ≥700mm | ≥700mm | ≥700mm | ≥700mm |
Red Color Index(R9) | 95 | 95 | 95 | 95 | 95 |
Dimming Range | 8-100% 11 STEP | ||||
Endoscopy Model | yes | ||||
Votage Frequency | 110~220V 50/60Hz | ||||
Head Power(W) | 80/80 | 80/50 | 50/50 | 50 | 80 |
LED bulbs Service Life hours | ≥50000 | ||||
Installation height(Ceiling Type)(mm) | 2800-3200mm | ||||
选配(Optional) | (Emergency battery) HD Camera system |
Product Feature:
Built-in optical sensor can realize automatic light compensation according to the light conditions of doctors during surgery, Electronic focusing frees hands of doctors and nurses to reduce bacterial infection.
The additional three small lamp beads are suitable for the lighting function of endoscopic minimally invasive surgery. At the same time, a dual-control mode is added to make the operation more convenient and safe.
The V series of lights adopt LCD touch control and push-type dual control system. The LCD control panel can realize 11-level parameter adjustment to meet the needs of doctors for different illumination and brightness.
Both sides of the lamp head are hollowed out, which is convenient for doctors to adjust the angle of the surgical lamp anytime and anywhere to meet the surgical needs.
MEDECO V series LED Operating Light fully enclosed conforms to aerodynamic streamline ultraa-thin lamp body design, disinfection, more convenient and flexible operation.
Having excellent medical lighting effects and wide applicability, its an ideal surgical shadowless lighting system that meets the requirement of comprehensive hospitals, beauty salons, dental clinics, dental hospitals and pet hospitals operating rooms.
Model/ | V LED700/700 | V LED700/500 | VLED500/500 | V LED500 | VLED 70 |
mm) Diameter of Light dome(mm) | 700/700 | 700/500 | 500/500 | 500 | 700 |
LED bulbs(pcs) | 78/78 | 78/42 | 42/42 | 42 | 78 |
Luminance(Lux) | 15000-160000 / 10000-160000 | 15000-160000 / 10000-150000 | 10000-150000 / 10000-150000 | 10000-150000 | 15000-160000 |
Focusable light-field size(mm) | 120-250 | 120-250 | 120-250 | 120-250 | 120-250 |
Color Temp. | 4000-5500K | 4000-5500K | 4000-5500K | 4000-5500K | 4000-5500K |
Illumination Depth(cm) | ≥700mm | ≥700mm | ≥700mm | ≥700mm | ≥700mm |
Red Color Index(R9) | 95 | 95 | 95 | 95 | 95 |
Dimming Range | 8-100% 11 STEP | ||||
Endoscopy Model | yes | ||||
Votage Frequency | 110~220V 50/60Hz | ||||
Head Power(W) | 80/80 | 80/50 | 50/50 | 50 | 80 |
LED bulbs Service Life hours | ≥50000 | ||||
Installation height(Ceiling Type)(mm) | 2800-3200mm | ||||
选配(Optional) | (Emergency battery) HD Camera system |
Product Feature:
Built-in optical sensor can realize automatic light compensation according to the light conditions of doctors during surgery, Electronic focusing frees hands of doctors and nurses to reduce bacterial infection.
The additional three small lamp beads are suitable for the lighting function of endoscopic minimally invasive surgery. At the same time, a dual-control mode is added to make the operation more convenient and safe.
The V series of lights adopt LCD touch control and push-type dual control system. The LCD control panel can realize 11-level parameter adjustment to meet the needs of doctors for different illumination and brightness.
Both sides of the lamp head are hollowed out, which is convenient for doctors to adjust the angle of the surgical lamp anytime and anywhere to meet the surgical needs.
