1. Low lift and the distance of the mesa is 450mm. There is ample space for use with c-arm.
2. Vertical panning up to 530mm,do not need to reverse out patient or adjust the table in advance to General c-arm pivot to the patient and image review.
3.4-self-compensation-type floor the brakes locked, all mechanically operated emergency brake release systems.(Only Model JHDS-99E-1 has this function).
4. It has emergency power.It can be used when the electric power is off.
5. In set waist bridge.
6. The mesa of the table can male V style body position 100°,Anti-V 220°.
7. Using memory foam, natural plastic in accordance with the patient's body temperature and body size, removable.(Optional Components).
8. Backup operating system.
ECOH001 E-2 Electric Hydraulic Comprehensive Operation Table
BEDFORDMED
940290000
Availability: | |
---|---|

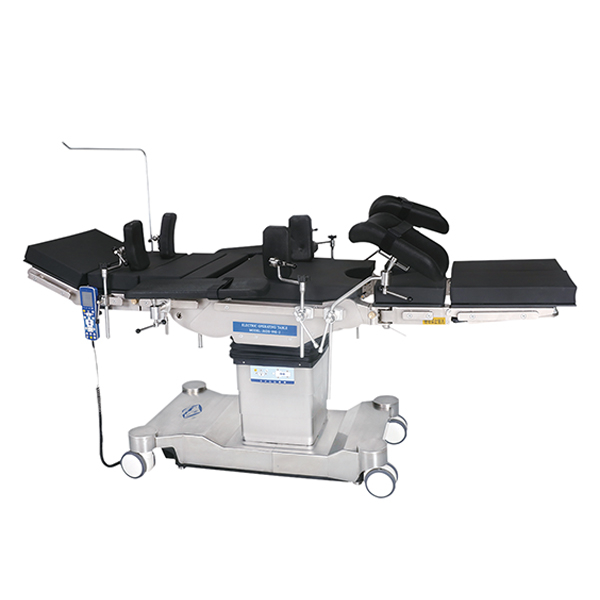

Electric Hydraulic Operating Table (ECOH001 E-2)
Hospital Medical Electric hydraulic operating table ECOH001E-2 applied a combination of modern technology and humanization design concept, electro-mechanical drive technology.
This product combine many functions:
1.Ultra-low and large stroke, can meet the requirements of general surgery, ophthalmology and brain, orthopedics surgery, convenient hospital operating room arrangement management
2.Operating table lifting, front and back tilt, backplane folding, leg plate down folding, braking, translation all use electric hydraulic system to achieve
3.The segmented leg plate can be turned simultaneously or separately. The lower leg plates can also be turned separately
4.Double folding head plate, can be adjusted up and down folding Angle, and can be set into a headrest form, to provide full comfort to the patient
5.Optional head and leg plate can be easily interchangeable, can realize the reverse mode of patient positioning
6.One key to achieve positive and negative V
7.Large diameter medical grade silent caster, easy to move flexible
8.Four-point self-compensating floor brake lock, can automatically adjust the height to eliminate the impact of uneven floor
9.All housing, bed frame are SUS304 stainless steel
Main Usage & Structure
Main Usage: Electric operating table can be operated for clinical use.
Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.
Specifications
Dimension of table top:
Overall Length.......................................2100mm
Width.....................................................500mm
Dimension of section:
Head Section...................................…250×500mm
Back Section.......................................465×500mm
Kidney Bridge.....................................75×500mm
Seat section........................................630×500mm
Leg Section....................................…600×240mm
Table top of from floor
Min Height......................................….700mm
Max Height.........................................1150mm
Adjust.............................................….450mm
Range of movements:
Reversed Trendelenburg.................................…≥30°
Trendelenburg.................................….................≥25°
Lateral Tilt.......................................…..................≥25°
Backward and Forward Movements.............................≥530mm
Adjustment of sections:
Head Section Raised from the horizontal.....................…≥45°
Head Section lowered from the horizonta.........................≥90°
Back Section Raised from the horizontal..........................≥75°
Back Section Lowered from the horizontal.......................≥30°
Leg Section Lowered from the horizontal..........................≥90°
Leg section opened....................................….....................≥90°
Kidney Bridge Elevated (When optional)..........................≥80mm
Level reset zero (When optional)........................................±2°
Lifting speed.........................................................................4~16mm/s
safe working load...........................................................…150kg
Structure
1 The Electric operating table uses electro-hydraulic systems to control all the movements: height adjustment, trendelenburg and reversed trendelenburg, lateral tilt, back movements, forward and backward movement , kidney bridge elevating ,V style and Anti-V, brake. Head section, leg section and vertical rotation of tabletop are operated by manual operation.
2 The table comprises of five sections: head section, back section, Waist Section(When optional), sitting section and leg section.
The forward and backward movement of tabletop can make C-arm perspective quick and easy.
Numberal order | Name of accessories | Number | |
1 | Head section | 1 | |
2 | Anaesthetic Screen | 1 | |
3 | Body support | Large 1.smart 1 | |
4 | Shoulder support | 2 | |
5 | Arm rest | 2 | |
6 | Knee crutch | 2 | |
7 | Cushion | 1 |
RFQ :
1. What's the Min order ?
A: Our MOQ is 1 PC, we welcome new and old customers to place sample orders to experience our products and services.
2. What's your payment ways ?
A:Our payment ways as following:
If total value less than US$5000,we encourage customer pay all them in once time.
If total value more than US$5000, 30% TT before producing, and 70% TT before shipping time.
3. Can you support OEM using our band ?
A: Yes we are manufacture and we have strict quality control department, we could based on customer's demands printing their logo in the front of product, nameplate and other place.
