Main Usage: Electric operating table can be operated for clinical use.
Structure : Operating table consists of two parts: mechanical and electro-hydraulic control system.
Depending on manual operation, the product can meet the requirement of posture in clinical operation.
ECOH007 Electric Hydraulic Comprehensive Operation Table
BEDFORDMED
940290000
Availability: | |
---|---|

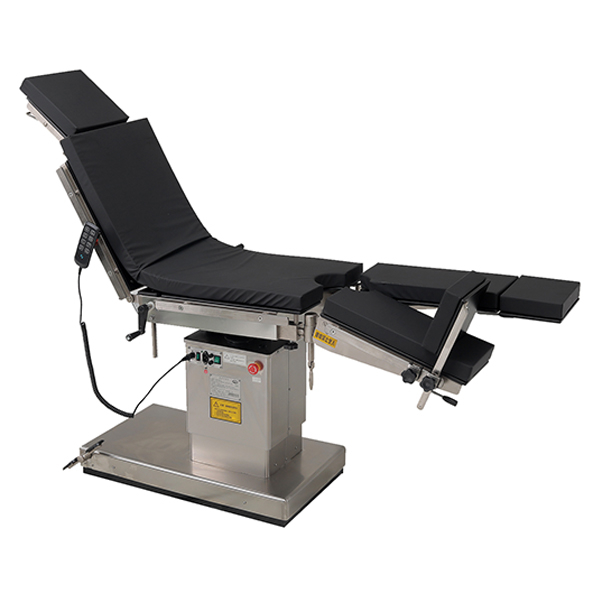

Hospital Medical Equipment Surgical Electric Operating Table ECOH007
Main Usage & Structure of Electric Operating Table ECOH007:
The Electric Medical Operating Bed is used for head, neck, thoracic-abdominal cavity, perineum and limbs surgery in hospital operating rooms, as well as obstetrics and gynecology, ENT, orthopedics and other operations. The leg plate can be folded, abducted and detachable, and it is convenient to adjust, which is very convenient for urological surgery. The table top lifting, front and back, left and right tilt, and back plate turning are realized by electric devices, which are flexible, safe and reliable. Optional double-layer table for X-ray inspection during surgery.
Dimension of table top of Electric Operating Table ECOH007:
Overall Length.......................................…2100mm
Width.............................................….........480mm
Dimension of section:
Head Section.......................................…..280×325mm
Back Section.........................................….500×480mm
Seat section.......................................…... 530×480mm
Leg Section.......................................….. ..510×236mm
Foot Section.......................................… ..180×273mm
Kidney Bridge.......................................…100×480mm
Table top of from floor:
Max Height................................................1000mm
Min Height................................................750mm
Range of movements:
Reversed Tendelenburg.......................................... ...≥200
Trendelenburg...............................................................≥150
Lateral tilt..........................................…..........................≥150
Adjustment of Sections Electric Operating Table ECOH007:
Head Section Raised from the horizontal....................... ≥450
Head Section lowered from the horizontal.......................≥900
Leg Section Lowered from the horizontal...............…......≥900
Leg Section opened....................................................….≥900
Back Section Raised from the horizontal..........................≥450
Back Section lowered from the horizontal.........................≥150
Kidney Bridge Elevated....................................................≥100mm
Safe Working Load..........................................................135kg
Lifting speed................................................................4~16mm/s
Foot and leg board board into a horizontal or vertical.
IPX4 Ingress Protection:IPX4
Power: AC220V,50Hz
Internal electric source:(DC)24V
Battery capacity ≥ 2.4AH Device safety sort IB
Structure of Electric Operating Table:
Electric Operating Table is made up of the table top, the main part, the electric controlling part and the accessories, etc. It's raising, lowering, lateral tilt, trendelenburg and reversed trendelenburg movements ,back section bending are all drived by the motors.
The table top is made up of head section, back section, seat section, leg section and kidney bridge. The head section can be disassembled. The head section can be raised or lowered from the horizontal. The leg section can be lowered from the horizontal and opened. The back section can be raised or lowered from the horizontal. Table top is made of engineering plasties, thus X-ray examination of can be carried out on it.
The main part includes rotary frame, lateral tilt arrangements, trendelenburg and reversed trendelenburg arrangements, ascending and descending arrangements and the base.
Numberal order | Name of accessories | Number | |
1 | Head section | 1 | |
2 | Stand for anaesthetic bottle | 1 | |
3 | Body support | Large 1.smart 1 | |
4 | Shoulder support | 2 | |
5 | Arm rest | 1 | |
6 | Knee crutch | 2 | |
7 | Cushion | 1 | |
8 | Foot Section | 2 | |
9 | Body Restraint Strap | 1 | Optional |
10 | Handle | 1 |
RFQ :
1. What's the Min order ?
A: Our MOQ is 1 PC, we welcome new and old customers to place sample orders to experience our products and services.
2. What's your payment ways ?
A:Our payment ways as following:
If total value less than US$5000,we encourage customer pay all them in once time.
If total value more than US$5000, 30% TT before producing, and 70% TT before shipping time.
3. Can you support OEM using our band ?
A: Yes we are manufacture and we have strict quality control department, we could based on customer's demands printing their logo in the front of product, nameplate and other place.
