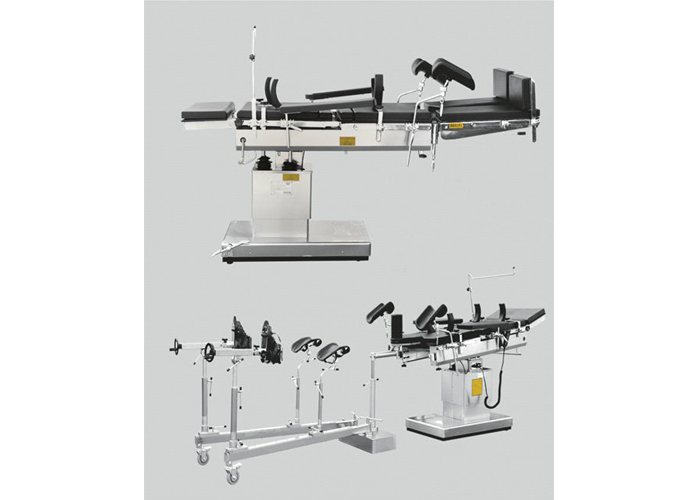

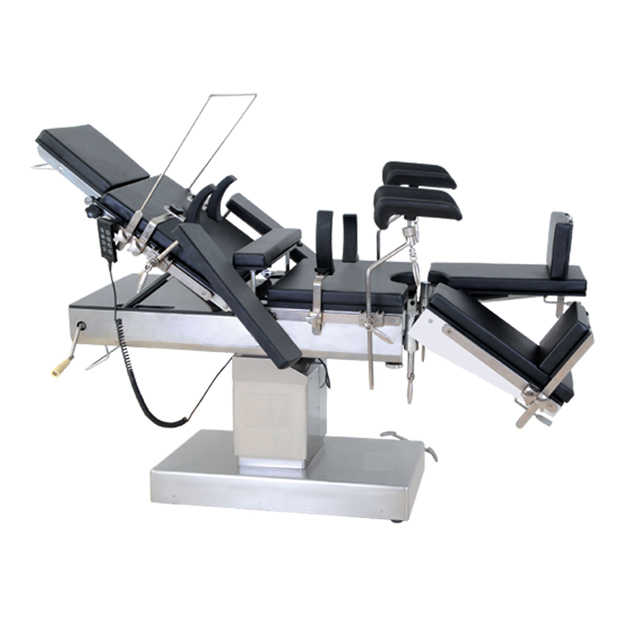

ECOH005A Electric Operation Table
BEDFORDMED
Medical Surgical Electric Operating Table With Folding Back and Leg Plates
ECOH005A Electric Operating Table is used for the operation of various parts of the human body in the operating room of the hospital.
Advantages of ECOH005A Electric Surgical Operating Table:
The operating table adopts 24V DC voltage, which is safe and reliable. The front of the table is tilted backward, left and right, up and down, and moved forward and backward, all realized by motors and operated by buttons.
1. The translational amount of the table top reaches 400mm. There is plenty of space, and it can be used with C-arm fluoroscopy and image inspection without moving the patient.
2, the head and leg plates can be disassembled, and can be equipped with orthopedic traction frame, head frame, etc. for lower limb orthopedic surgery and brain surgery.
3. Equipped with a built-in emergency power supply, the emergency power supply can automatically charge, when the network power supply is cut off, the Qingji power supply can automatically switch to the working state.
4. All covers of the product are made of SUS304 stainless steel.
5. Air springs are used for folding back and leg plates.
Main Specification Of ECOH005A Electric Operating Table:
| Length: | 2100mm | Width: | 500 mm |
| Table height: | 750 ~ 1000mm | Stroke: | ≥ 250mm free to lift, lock |
| Forward tilt: | ≥25° | backward tilt: | ≥25° |
| Left and right tilt: | ≥15° | head plate: | up ≥45° |
| head plate: | down ≥90° | back plate: | ≥45° |
| Waist rise lifting: | ≥80mm | Platform Horizontal movement: | ≥400mm |
| Power: | AC 220V ± 10%, 50HZ | Safe working load: | ≥135kg |
| Leg plate: | down ≥90° | Leg plate spilt: | ≥90° detachable |
| Foot plate can be 90° on the leg plate and can be removed. | |||
FAQ:
Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: MOQ is 1 set.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
