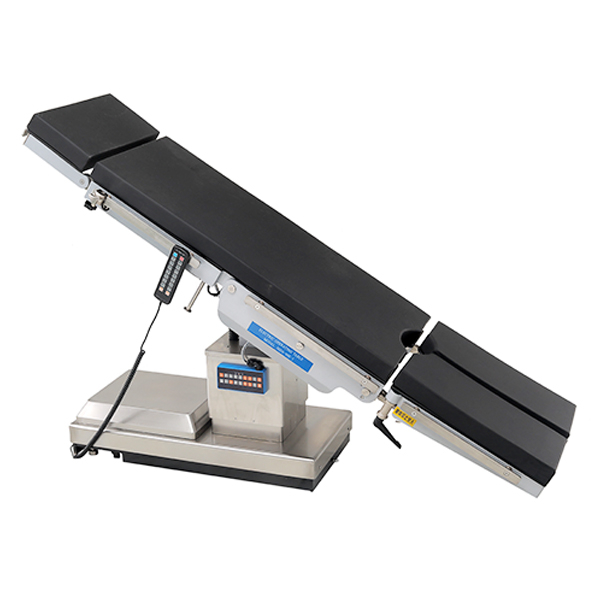

Medical High-quality Multi-functional Electric Hydraulic Surgical Operating Table ECOH001 E-1

1. Low lift and the distance of the mesa is 450mm. There is ample space for use with c-arm.
2. Vertical panning up to 530mm,do not need to reverse out patient or adjust the table in advance to General c-arm pivot to the patient and image review.
3.4-self-compensation-type floor the brakes locked, all mechanically operated emergency brake release systems.(Only Model JHDS-99E-1 has this function).
4. It has emergency power.It can be used when the electric power is off.
5. In set waist bridge.
6. The mesa of the table can male V style body position 100°,Anti-V 220°.
7. Using memory foam, natural plastic in accordance with the patient's body temperature and body size, removable.(Optional Components).
8. Backup operating system.


  • ECOH001 E-1 Electric Hydraulic Comprehensive Operation Table

  • BEDFORDMED

  • 940290000

Availability:

Electric Hydraulic Operating Table (ECOH001 E-1)


Electric hydraulic operating table ECOH001E-1 applied a combination of modern technology and humanization design concept, electro-mechanical drive technology.

This product combine many functions:
1. Low lift and the distance of the mesa is 450mm. There is ample space for use with c-arm.
2. Vertical panning up to 530mm,do not need to reverse out patient or adjust the table in advance to General c-arm pivot to the patient and image review.
3.4-self-compensation-type floor the brakes locked, all mechanically operated emergency brake release systems.(Only Model JHDS-99E-1 has this function).
4. It has emergency power.It can be used when the electric power is off.
5. In set waist bridge.
6. The mesa of the table can male V style body position 100°,Anti-V 220°.
7. Using memory foam, natural plastic in accordance with the patient's body temperature and body size, removable.(Optional Components).
8. Backup operating system.

Main Usage & Structure
Main Usage: Electric operating table can be operated for clinical use.
Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

Specifications
Dimension of table top:
Overall Length.......................................2100mm
Width.....................................................500mm

Dimension of section:
Head Section...................................…250×500mm
Back Section.......................................465×500mm
Kidney Bridge.....................................75×500mm
Seat section........................................630×500mm
Leg Section....................................…600×240mm
Table top of from floor
Min Height......................................….700mm
Max Height.........................................1150mm
Adjust.............................................….450mm
Range of movements:
Reversed Trendelenburg.................................…≥30°
Trendelenburg.................................….................≥25°
Lateral Tilt.......................................…..................≥25°
Backward and Forward Movements.............................≥530mm
Adjustment of sections:
Head Section Raised  from the horizontal.....................…≥45°
Head Section lowered from the horizonta.........................≥90°
Back Section Raised from the horizontal..........................≥75°
Back Section Lowered from the horizontal.......................≥30°
Leg Section Lowered from the horizontal..........................≥90°
Leg section opened....................................….....................≥90°
Kidney Bridge Elevated (When optional)..........................≥80mm
Level reset zero (When optional)........................................±2°
Lifting speed.........................................................................4~16mm/s
safe working load...........................................................…150kg


Structure
1 The Electric operating table uses electro-hydraulic systems to control all the movements: height adjustment, trendelenburg and reversed trendelenburg, lateral tilt, back movements, forward and backward movement , kidney bridge elevating ,V style and Anti-V, brake. Head section, leg section and vertical rotation of tabletop are operated by manual operation.

2 The table comprises of five sections: head section, back section, Waist Section(When optional), sitting section and leg section.
The forward and backward movement of tabletop can make C-arm perspective quick and easy.


Numberal order Name of accessories Number
1 Head section 1
2 Anaesthetic Screen 1
3 Body support Large 1.smart 1
4 Shoulder support 2
5 Arm rest 2
6 Knee crutch 2
7 Cushion 1



附图-2附图-1附图-4
